Range hood controller

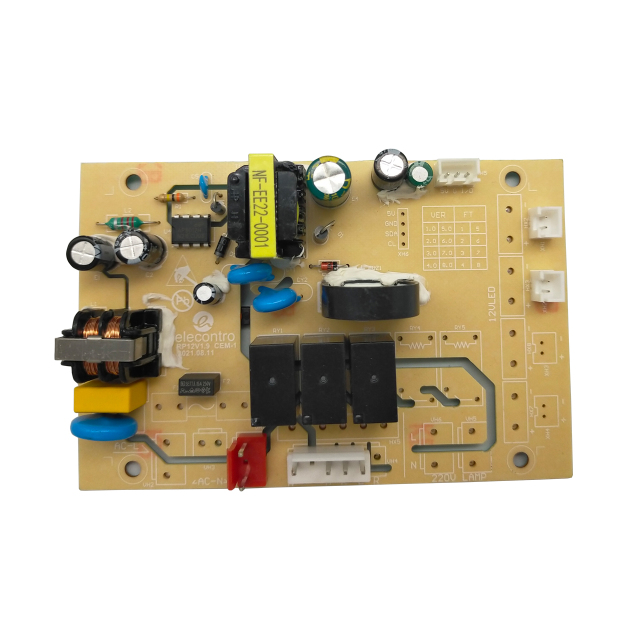

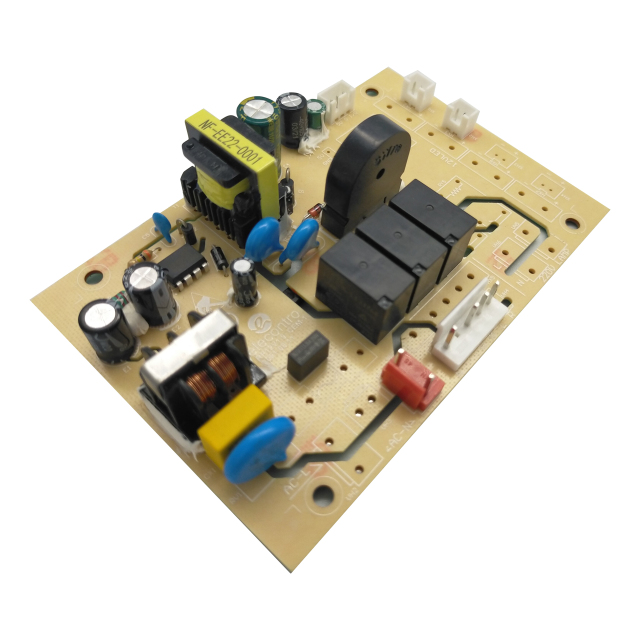

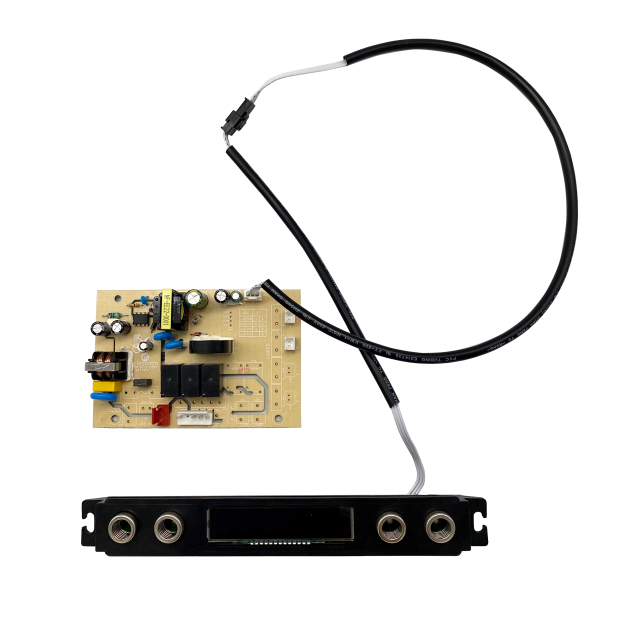

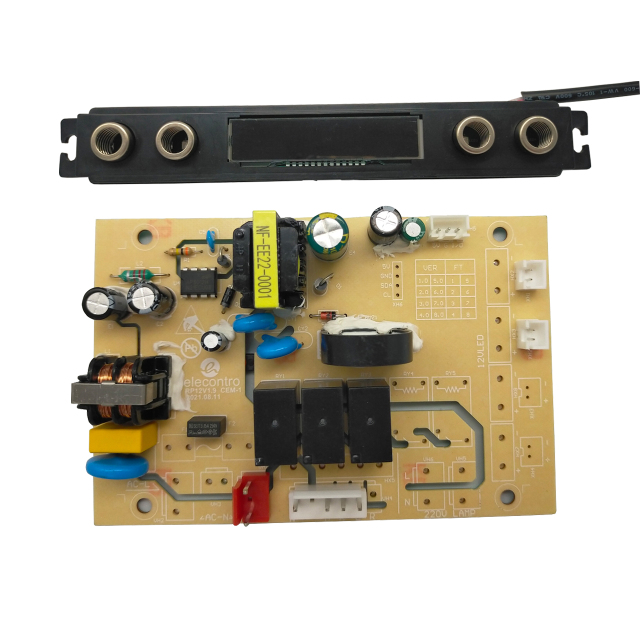

RH15 Cooker Hood Circuit Board

Item No.: RH15

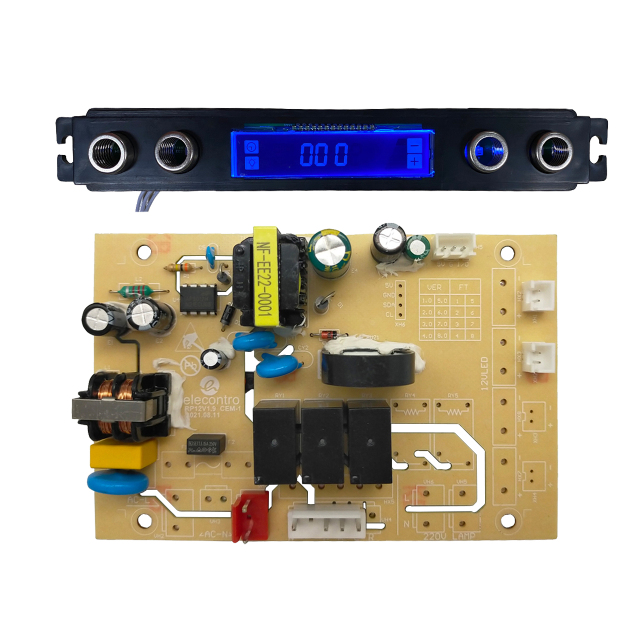

Cooker hood circuit board with LCD screen display, the screen and button lights are blue, novel and unique. The display screen integrates the wind speed size, current time, wind speed delay closing time and lighting display, allowing users to see the set
Description
Description





Elecontro® RH15 Cooker Hood Circuit Board Intruduction

A good cooker hood circuit board can let cooker hood increase more function, such as the LCD screen display, multiple wind speed gear control, independent lighting control,clock display,delay to close the wind speed gear,low noise and so on.


Elecontro® RH15 Cooker Hood Circuit Board Function

♦ LCD screen display:With LCD screen display, the screen and button lights are blue, novel and unique. The display screen integrates the wind speed size, current time, wind speed delay closing time and lighting display, allowing users to see the set data size more conveniently and intuitively.
♦ Multiple wind speed gear control:Provides three wind speed gears, low speed, medium speed, and high speed, and users can freely switch the wind speed gear according to the actual cooking situation.
♦ Independent lighting control:After power on, the user can independently control whether the lighting of the range hood is on in any state.
♦ Clock display:Support clock setting, can be adjusted cyclically, and time precision is high.
♦ Delay to close the wind speed gear:At any wind speed, the range hood can be controlled to delay the closing wind speed, so that the lampblack can be fully absorbed. At present, the time range of the delayed closing wind speed can be supported is 1~9min, and the time range of the delayed closing wind speed can be adjusted according to the requirements of users.
♦  AC and DC lighting supported
♦  Relay:5A*5
♦ Voltage range:AC 100~250V
