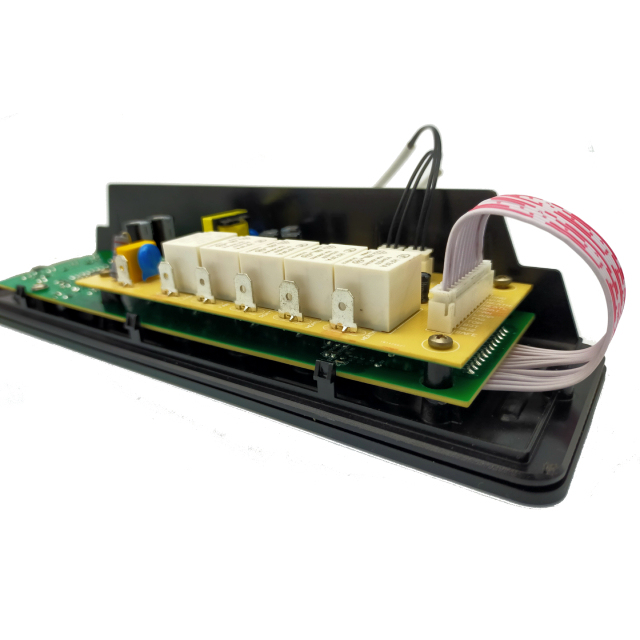

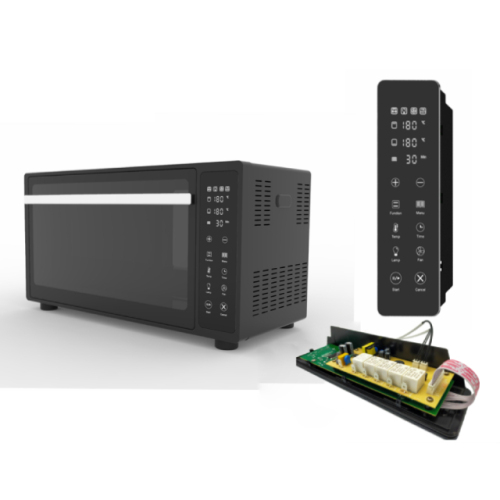

OM24 Oven Circuit Board

No.OM24
LED is easily selected on the machine through a one-button display and application.The oven circuit board stands out from the rest, with a variety of preset menus, and you can use it to make almost any food.
  • OM24 Oven Circuit Board
  • OM24 Oven Circuit Board
  • OM24 Oven Circuit Board
  • OM24 Oven Circuit Board
  • OM24 Oven Circuit Board
  • OM24 Oven Circuit Board
Description

Our Oven Circuit Board Intruduction

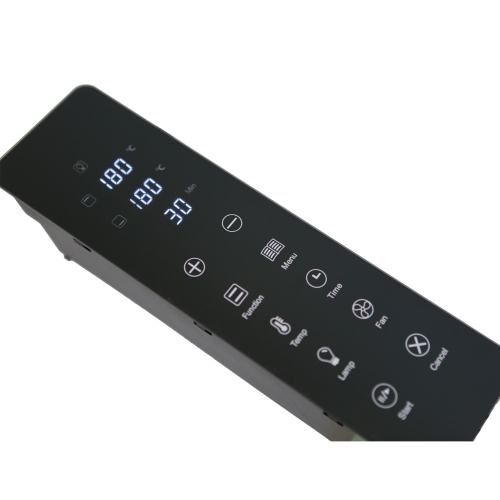

♦ Oven circuit board LED is easily selected on the machine through a one-button display and application.The oven circuit board stands out from the rest, with a variety of preset menus, and you can use it to make almost any food.
♦ Function display (lower pipe, upper pipe, upper and lower pipe, rotation, fan, furnace lamp, ℃). User can choose different mode according to their needs and display correspondingly icons.
♦ Daytime-Energy saving mode: Pressing light in short time, 30 seconds off. Night- regular light mode: Pressing regular light, clear observation. AI Intelligent adjustable furnace lamp, lighting up baking passion.
♦ The user sets the temperature to start the preheating mode directly and stop immediately after the temperature reaches, then putting the food into the oven for baking. You can also skip the preheating and make baking directly.









Our Oven Circuit Board Features

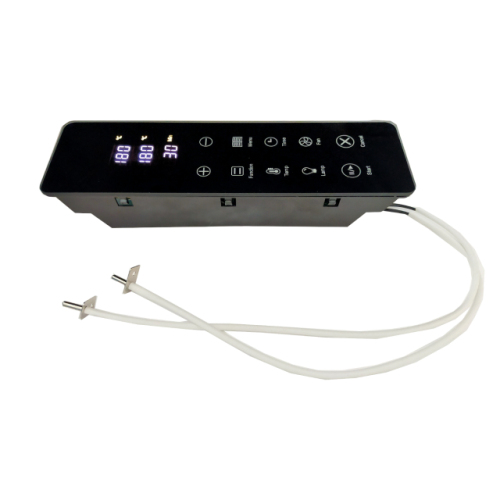

When the oven is working, the operator obtains the internal temperature value of the oven through the instrument and the temperature sensor, and operates through the control system.
♦ The hot air circulation heating method of oven has better gas fluidity and can accelerate the drying speed of materials in the oven compared with the ordinary heat dissipation heating method.
♦ The hot air circulation system of oven is composed of a blower motor, a wind wheel and an electric heater. The blower motor drives the wind wheel to send out cold air.

Input Feature

Input voltage range

AC 85~265V



Frequency

50HZ/60HZ



Efficiency

80%

Output Feature

Output voltage

12V/5V



Output Current

MAX 800MA



Output voltage accuracy

±5%



Ripple

≤40m Vp-p



Standby Power

≤1W

Protection Feature

Overpower Protection

150-170% rated power, power will be restored after fault is removed



Output short circuit protection

DC output in short circuit, eliminating short circuit and power will recover

Environmental Parameter

Working Temperature

-20℃∽+85℃

Safe and EMC standard

Safe standard

MEET- GB4943



Withstand voltage

CE  1500V/5Ma/3sec



Insulation resistance

I/P-O/P 500VDC/100MΩ hms
